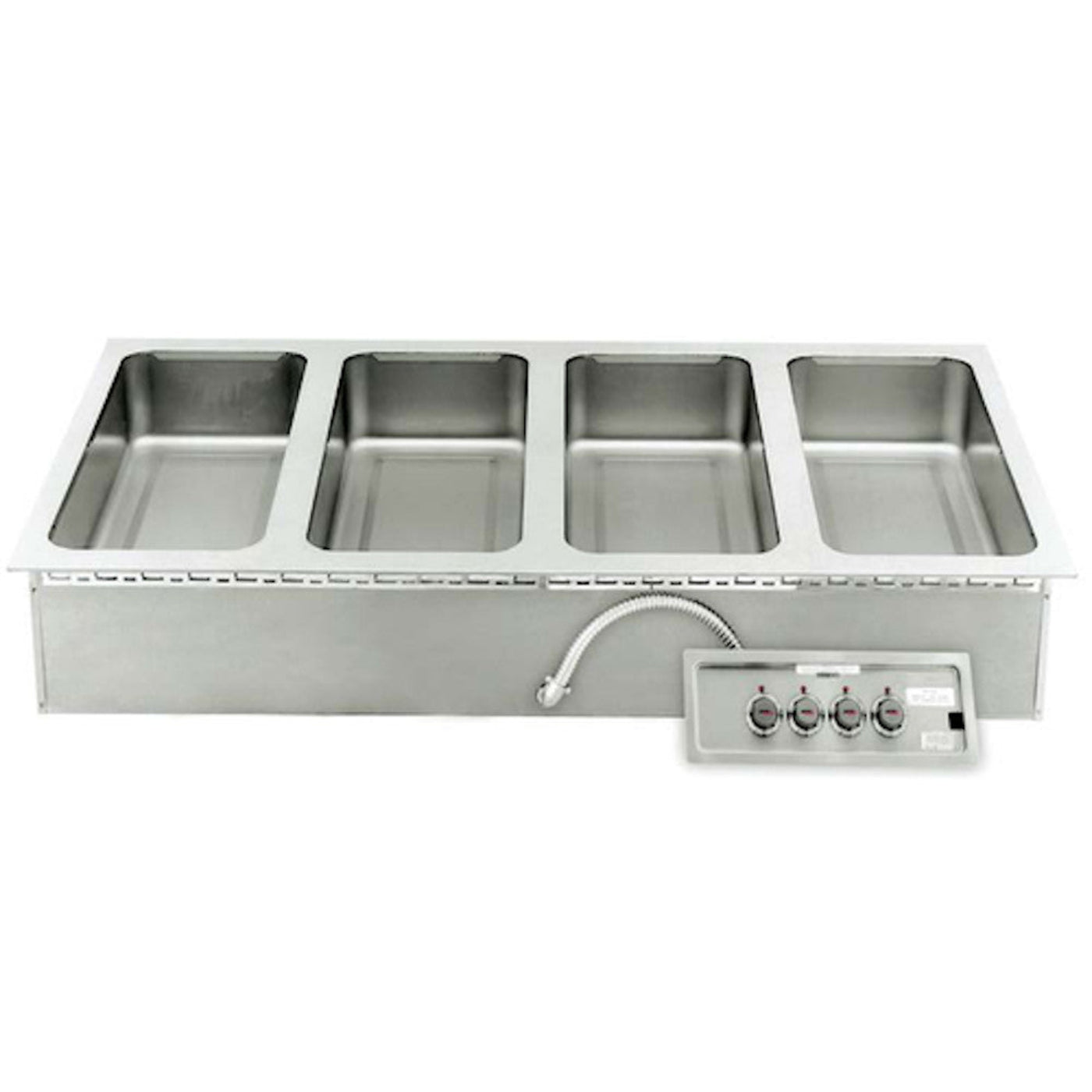

APW Wyott HFW-4 Electric Drop-In Hot Food Well Unit - AWHFW4
APW Wyott HFW-4 Electric Drop-In Hot Food Well Unit - AWHFW4
This APW Wyott HFW-4 Electric Drop-In Hot Food Well Unit is durable and efficient. It has a heavy duty top mount, deep-drawn austenite stainless steel well, and an aluminized outer housing. The housing's sides and bottom are fully insulated. This Drop-In Hot Food Well is easily installed in metal or wood countertops with its APW Wyott E-Z locks on all four exterior sides.
It has a tubular heating element shaped in a serpentine fashion for even heat distribution. The element is mounted under the well and is secured by an aluminized deflector shield for maximum efficiency. This HFW-4 can be used in WET or DRY operations, but WET offers the best results.
Features
- Heavy duty top mount, insulated rectangular drop-in hot food well
- Designed for installation in metal or wood countertops
- Accommodates standard size steam table pans
- Deep-drawn austenite stainless steel well
- Aluminized outer housing with sides and bottom fully insulated
- Heated by a tubular heating element shaped in serpentine fashion for even heat distribution to pan base
- Element is mounted under well and secured by aluminized deflector shield for maximum efficiency
- Standard with APW Wyott E-Z locks on all four exterior sides for easy installation
- Complete UL construction, including electrical conduit, bezel, and control box
- Units may be used WET or DRY, but WET offers best results
- Easy access to heating elements
- Large indicating pilot light
- Simplified construction reduces installation time and significantly reduces on-site electrical and plumbing cost
- Unitized electrical wiring for single power hookup
- Individual infinite controls
Specifications
| Model | HFW-4 |
|---|---|
| Capacity | (4) 12" × 20" wells |
| Electrical | 208/240V / 60Hz / 1-Phase, 4800/6400 W, 23.1/26.7 Amps, Direct |
| Dimensions (H × W × D) | 56.9" × 23.44" × 58.5" |
| Approximate Weight | 98 lbs |
What our Experts Think
-
Commercial-grade hot food holding
The APW Wyott HFW-4 Electric Drop-In Hot Food Well Unit features four 12″ × 20″ insulated wells that maintain safe, consistent serving temperatures—ideal for busy buffet lines, steam tables, and cook-serve stations. -
Even heat distribution
Serpentine tubular heating elements deliver uniform warmth across each well’s pan base, reducing cold spots and helping preserve food quality throughout service. -
Flexible wet or dry operation
Designed for both wet (with water) and dry holding, this unit adapts to different foods and service styles, giving operators maximum versatility. -
Durable, easy-install construction
Stainless steel wells with aluminized housing ensure corrosion resistance and easy cleaning, while EZ-Lock mounting on all sides simplifies countertop installation. -
Independent infinite controls
Each well has its own infinite temperature control and pilot light, allowing precise heat adjustment for varied menu items. -
Scalable for larger operations
Multiple units can be installed side-by-side in the same counter to expand hot holding capacity without complex electrical modifications.
Q&A
Q: What is the APW Wyott HFW-4 Electric Drop-In Hot Food Well Unit?
A: A commercial electric drop-in hot food well with four 12″ × 20″ wells designed to keep multiple hot foods at safe serving temperatures in buffets, cafeterias, and service lines.
Q: How does it heat and hold food?
A: It uses tubular serpentine heating elements mounted under the wells for even heat distribution, with infinite controls to adjust temperatures precisely.
Q: What materials and construction quality does it have?
A: The unit features stainless steel wells, an aluminized outer housing, and fully insulated construction for durability and efficient heat retention.
Q: Can it be used wet or dry?
A: Yes — it supports wet or dry operation, with wet operation typically recommended for best results.
Q: How is installation handled?
A: The HFW-4 includes EZ-Lock mounting on all four exterior sides for easy drop-in installation into countertops.
Q: What controls and features does it include?
A: Each well has individual infinite controls and a large indicating pilot light for easy monitoring and adjustment.
Q: What certifications and safety features are included?
A: Units typically meet UL and NSF commercial foodservice standards for safety and sanitation.
Q: Why choose the HFW-4 hot food well?
A: With its four-well capacity, even heating, flexible operation modes, durable construction, and easy installation, it’s ideal for busy commercial kitchens and serving lines.
Maintenance Tips
- Daily surface cleaning: Wipe the stainless steel well and surrounding countertop area with warm, soapy water or a mild, food-safe cleaner after each service to remove food residue and grease.
- Sanitize regularly: After cleaning, apply a food-grade sanitizer to all food-contact surfaces to maintain hygiene and comply with health codes.
- Drain maintenance (if equipped): If your model has a drain option, clear the drain and removable screen daily to prevent clogs and standing water.
- Check thermostatic control: Verify the thermostat is functioning correctly and holding consistent temperatures for safe food holding.
- Inspect heating element area: Ensure the serpentine heating element area underneath is free of debris and buildup for even heat distribution.
- Avoid harsh abrasives: Use non-abrasive cloths/pads to protect the stainless finish and prevent scratches.
- Dry thoroughly: After cleaning, dry the well and adjacent surfaces completely to prevent water spots and corrosion.
- Power off before servicing: Always disconnect power before deep cleaning or any maintenance to avoid electrical hazards.
