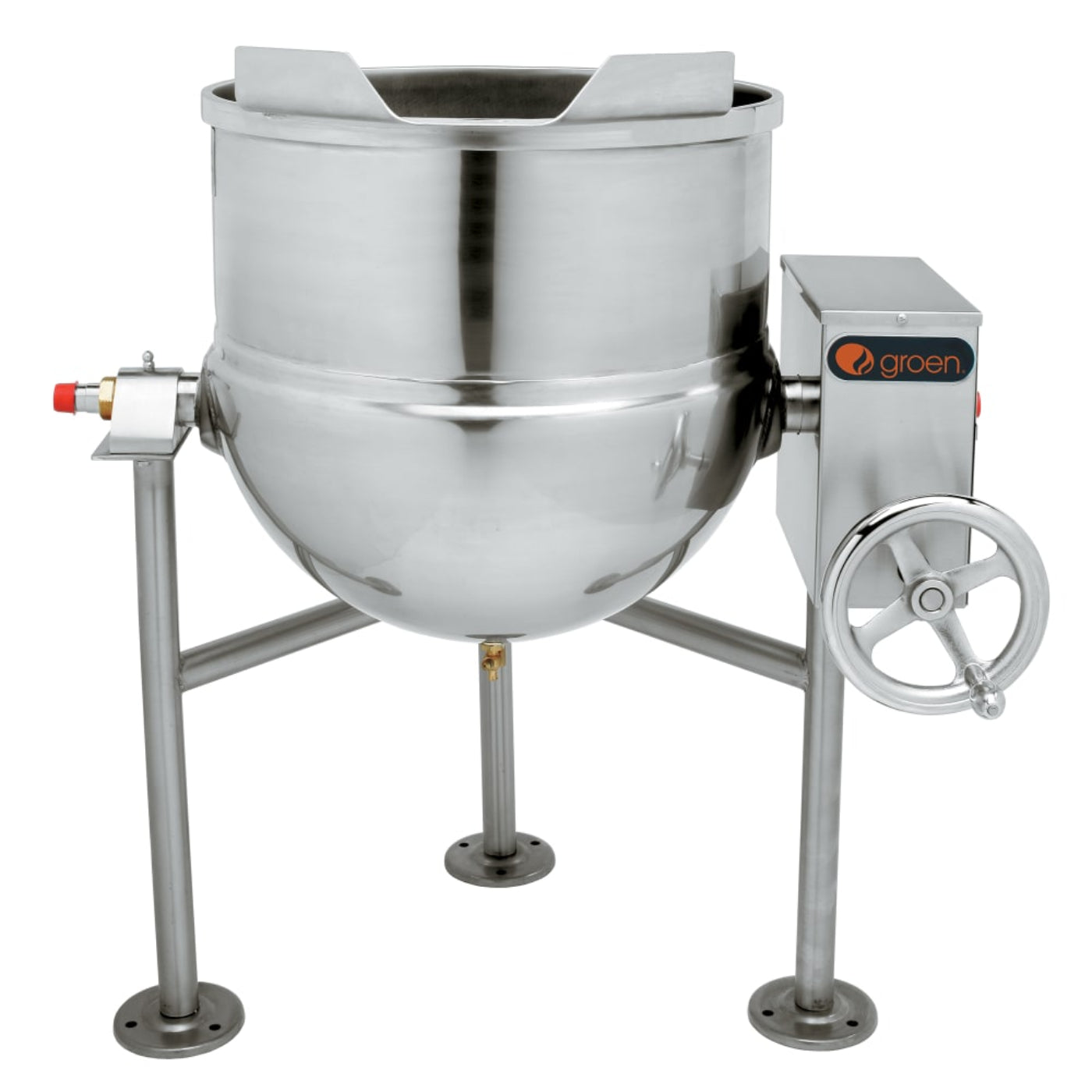

Globe Groen DL-40 TA/3 Direct Steam 40-Gallon Kettle/Cooker Mixer - 1.7 kW - GRDL40TA3
Globe Groen DL-40 TA/3 Direct Steam 40-Gallon Kettle/Cooker Mixer - 1.7 kW - GRDL40TA3
If your business needs a Kettle/Cooker Mixer, this Groen DL-40, TA/3 may be exactly what you need. It has a durable stainless steel construction, easy to use controls, and ideal steam pressure features. It has a solid one-piece welded, 316 stainless steel construction with a 304 stainless steel solid one-piece kettle jacket. It has a heavy-duty reinforced rim and a welded-in butterfly-shaped pouring lip. The butterfly-shaped pouring lip ensures increased sanitation and durability. This DL-40, TA/3 includes 10-gallon etch markings, a double pantry faucet, and a steam regulating system.
The controls regulate both its agitator and steam. The agitator has electronic, variable speed controls and operates at any RPM between minimum and maximum. The steam pressure operates dependably at any steam pressure of 50 PSIG. The steam supply is injected directly into the jacket through the trunnion and the condensate is removed through a tube contained in the jacket and connected to the opposite trunnion. There are no exposed steam piping or obstructions on the kettle body.
Features
- Construction
- Solid one-piece welded, 316 stainless steel construction
- 304 stainless steel solid one-piece kettle jacket
- Heavy-duty reinforced rim with a welded-in butterfly-shaped pouring lip for maximum sanitation and durability
- Includes 10-gallon etch markings, double pantry faucet, and steam regulating system
- Tilting kettle with a positive locking worm and gear tilt mechanism
- Mechanism enclosed in a polished, drip-proof stainless steel housing
- Kettle mounted on a polished, stainless steel tri-leg stand with stainless steel floor flanges
- Agitator Assembly
- Enclosed power transfer case to be cast aluminum with a 3-to-1 gear ratio
- Gear motor is completely enclosed type, cast iron housing, right angle shaft down, helical bevel gearing
- Variable speed motor driven through a variable electronic speed control
- Main agitator is anchor-type, shaped to the contour of the kettle and provided with removable nylon finger scrapers
- Secondary counter-rotating agitator is centrally located between the center shaft and the outside arms of the main agitator
- Both agitators are attached with bayonet connections for easy, quick removal for cleaning or when kettle is to be used without the mixing mechanism
- Both agitators are 304 stainless steel and either can be used alone
- Agitator assembly and motor drive can be manually tilted out to the back of the kettle
- Finish
- 180 emery grit polished kettle interior
- Bright semi-deluxe buff finish kettle exterior
- Ensures maximum ease in cleaning and maintaining brilliant appearance
- Steam Pressure
- Operates dependably at any steam pressure of 50 PSIG (to a minimum of 5 PSIG)
- Higher working pressure available
- Steam supply is injected directly into the jacket through the trunnion
- The condensate is removed through a tube contained in the jacket and connected to the opposite trunnion
- No exposed steam piping or obstructions are on the kettle body
- Agitator Controls
- Uses electronic, variable speed controls
- Operates at any RPM between minimum and maximum settings
- Installation Requirements
- 3/4" NPT steam inlet and condensate connection
- Remote steam source
- Steam trap assembly with check valve and globe valve
Specifications
| Model | DL-40, TA/3 |
|---|---|
| Capacity | 40 Gallon |
| Voltage | 208 V |
| Frequency | 60 Hz |
| Phase | 3 Phase |
| Horsepower | 1.5 HP |
| Amps | 5.0 A |
| Dimensions | 32.5" H x 40" W x 60" D |
| Approx. Weight | 520 lb |
What our Experts Think
- Powerful Heating: 1.7 kW direct steam system ensures fast, even cooking.
- Large Capacity: 40-gallon kettle handles high-volume commercial cooking with ease.
- Durable Construction: Heavy-duty stainless steel body built for long-lasting performance.
- Versatile Use: Ideal for soups, sauces, and other large-batch recipes.
- User-Friendly Controls: Easy operation for precise temperature and mixing control.
- Easy Maintenance: Smooth surfaces and simple design allow for quick cleaning.
Q&A
Q: What is this product?
A: A 40‑gallon direct‑steam kettle/cooker mixer designed for commercial kitchens and high‑volume food production.
Q: What cooking capacity does it offer?
A: It features a 40‑gallon capacity suitable for soups, sauces, stews, stocks, and large batch cooking.
Q: How does the heating work?
A: Uses direct steam heating at up to 50 PSI with a 2/3 steam jacket for fast, even heat distribution.
Q: What materials and build quality?
A: Constructed with a 316 stainless steel interior liner and stainless steel exterior for durability and corrosion resistance.
Q: What mixer features are included?
A: Includes a console‑mounted tilt‑out twin shaft scraper mixer to prevent scorching and ensure thorough blending.
Q: How is product control and operation?
A: Equipped with a floor‑mounted control console, tilt‑type design, etched level marks, and a 2″ flush‑mounted ball valve for precise batching and easy draining.
Q: Where is it best used?
A: Ideal for commercial kitchens, catering services, institutional food prep, and industrial food processing.
Maintenance Tips
- Clean kettle interior after each use to prevent residue buildup
- Wipe exterior with a damp cloth for hygiene
- Inspect steam connections and valves regularly
- Lubricate agitator and moving parts per manufacturer instructions
- Check safety valves and pressure gauges for proper function
- Drain water and steam lines after use to prevent scaling
- Follow manufacturer guidelines for safe operation
