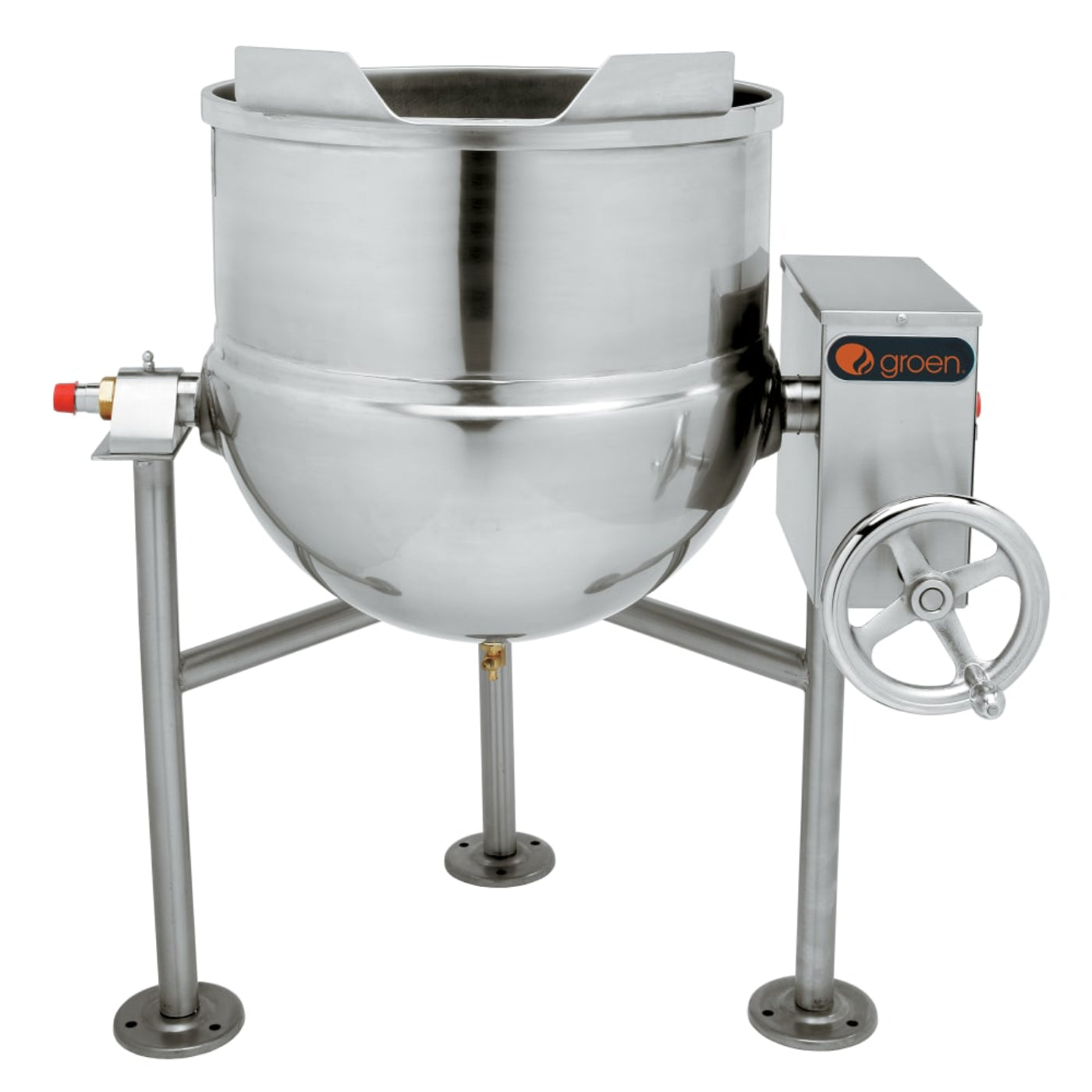

Globe Groen Direct Steam 80-Gallon Kettle/Cooker Mixer - 1.7 kW - GRDL80TA3
Globe Groen Direct Steam 80-Gallon Kettle/Cooker Mixer - 1.7 kW - GRDL80TA3
If your business needs a Kettle/Cooker Mixer, this Groen DL-80, TA/3 may be exactly what you need. It has a durable stainless steel construction, easy to use controls, and ideal steam pressure features. It has a solid one-piece welded, 316 stainless steel construction with a 304 stainless steel solid one-piece kettle jacket. It has a heavy-duty reinforced rim and a welded-in butterfly-shaped pouring lip. The butterfly-shaped pouring lip ensures increased sanitation and durability. This DL-80, TA/3 includes 10-gallon etch markings, a double pantry faucet, and a steam regulating system.
The controls regulate both its agitator and steam. The agitator has electronic, variable speed controls and operates at any RPM between minimum and maximum. The steam pressure operates dependably at any steam pressure of 50 PSIG. The steam supply is injected directly into the jacket through the trunnion and the condensate is removed through a tube contained in the jacket and connected to the opposite trunnion. There are no exposed steam piping or obstructions on the kettle body.
Features
- Construction
- Solid one-piece welded, 316 stainless steel construction
- 304 stainless steel solid one-piece kettle jacket
- Heavy-duty reinforced rim with a welded-in butterfly-shaped pouring lip for maximum sanitation and durability
- Includes 10-gallon etch markings, double pantry faucet, and steam regulating system
- Tilting kettle with a positive locking worm and gear tilt mechanism
- Mechanism enclosed in a polished, drip-proof stainless steel housing
- Kettle mounted on a polished, stainless steel tri-leg stand with stainless steel floor flanges
- Agitator Assembly
- Enclosed power transfer case to be cast aluminum with a 3-to-1 gear ratio
- Gear motor is completely enclosed type, cast iron housing, right angle shaft down, helical bevel gearing
- Variable speed motor driven through a variable electronic speed control
- Main agitator is anchor-type, shaped to the contour of the kettle and provided with removable nylon finger scrapers
- Secondary counter-rotating agitator is centrally located between the center shaft and the outside arms of the main agitator
- Both agitators are attached with bayonet connections for easy, quick removal for cleaning or when kettle is to be used without the mixing mechanism
- Both agitators are 304 stainless steel and either can be used alone
- Agitator assembly and motor drive can be manually tilted out to the back of the kettle
What our Experts Think
- High-Powered Cooking: 1.7 kW direct steam system delivers fast, even heat for large batches.
- Extra-Large Capacity: 80-gallon kettle handles high-volume commercial cooking with ease.
- Durable Construction: Heavy-duty stainless steel designed for long-term use in busy kitchens.
- Versatile Application: Perfect for soups, sauces, and other large-batch recipes.
- User-Friendly Controls: Simple operation ensures precise temperature and mixing management.
- Easy Maintenance: Smooth surfaces and accessible design allow quick, safe cleaning.
Q&A
Q: What is this product?
A: A direct steam commercial kettle/cooker mixer with an 80‑gallon capacity, designed for high‑volume batch cooking in professional kitchens.
Q: How does it heat and mix food?
A: Uses direct steam with a 2/3 steam jacket for fast, even heating, plus a console‑mounted tilt‑out twin‑shaft scraper mixer for uniform mixing.
Q: What is the construction like?
A: Built with a 316 stainless steel interior liner and stainless steel exterior for durability, sanitation, and easy cleaning.
Q: How do you discharge and measure product?
A: Includes a 2″ flush‑mounted ball valve and etched volume marks for precise draining and portion control.
Q: Where is it best used?
A: Ideal for commercial kitchens, institutional foodservice, catering, and large‑batch production.
Q: Specifications & power?
A: Operates at 50 PSI steam pressure with 1.7 kW mixer power; tilt‑type design and floor‑mounted control console optimize workflow.
Maintenance Tips
- Clean kettle interior after each use to prevent residue buildup
- Wipe exterior with a damp cloth for hygiene
- Inspect steam connections, valves, and seals regularly
- Lubricate agitator and moving parts per manufacturer instructions
- Check safety valves and pressure gauges for proper function
- Drain water and steam lines after use to prevent scaling
- Follow manufacturer guidelines for safe operation
