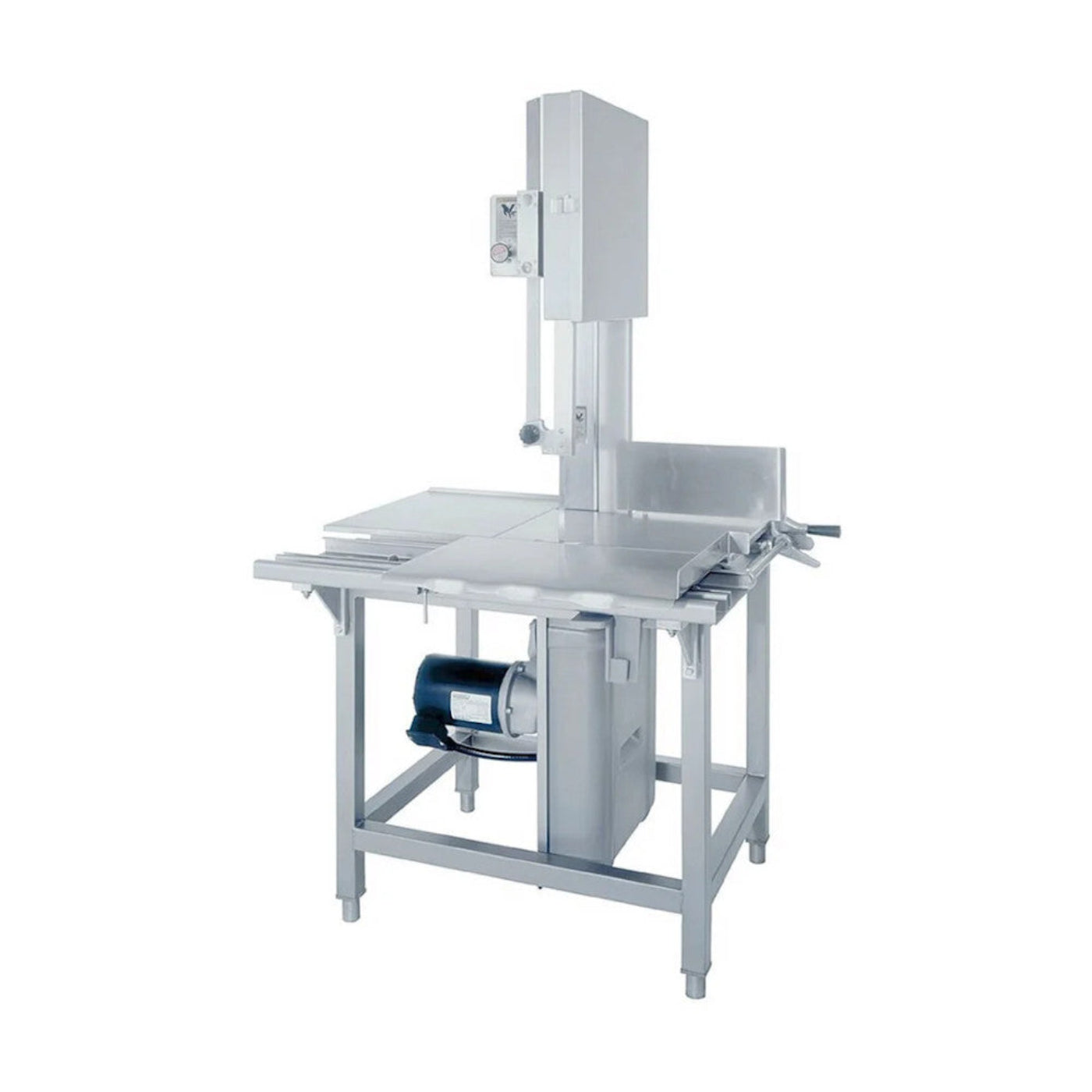

TRUE Hobart 6801-18 Vertical Electric Meat Saw - HT680118
TRUE Hobart 6801-18 Vertical Electric Meat Saw - HT680118
The Hobart 6801-18 Vertical Electric Meat Saw features an open design which is easy to clean, simply hose it down. The integrated pulley design is precisely balanced for true-running of the blade. The 3-H.P. motor is totally enclosed and water resistant.
A single pull-to-start, push-to-stop switch makes Hobart meat saws very simple to operate. Hobart designed their meat saws to be easy to use safely. Both the upper and lower pulleys are completely enclosed. The blade is guarded above and below the cutting zone. There is a pusher plate to eliminate the need for handling items too close to the blade.
Features
- Model: 6801 - Vertical Meat Saw
- 3 H.P. motor
- Direct gear drive transmission
- Tri-rail carriage
- Open frame stainless steel construction
- Center crown pulley
- Removable double flanged pulleys
- Split rear table
- Direction grain stainless steel
- Pivoted automatic tension
- Stainless steel top cover
- Adjustable legs
Specifications
| Model | 6801 |
|---|---|
| Type | Vertical meat saw |
| Motor | 3 HP |
| Electrical Options | 200–240 V / 50/60 Hz / 1-phase, 200–230 V / 60 Hz / 3-phase, 208–240 V / 60 Hz / 3-phase, 460 V / 60 Hz / 3-phase; also available 220 V / 50 Hz / 3-phase, 380–415 V / 50/60 Hz / 3-phase (not UL listed) |
| Switch Type | Single pull-to-start, push-to-stop |
| Standard Leg Height | 2" (adjustable 1-3/4" to 2-1/4") |
| Optional Leg Height | 4" (adjustable 3-3/4" to 4-1/4") |
| Saw Blade | 5/8" wide × 142" long |
| Cutting Capacity (D×H×W) | 15-3/4" × 17-1/2" × 24" |
| Weight | Net: 430 lbs; Shipping: ~570 lbs |
What our Experts Think
Q&A
Q: What is the Hobart 6801‑18 Vertical Electric Meat Saw?
A: A commercial‑grade vertical meat band saw engineered for butcher shops, meat rooms, and high‑volume foodservice operations requiring fast, precise cutting of raw meat and bones.
Q: What are the key performance specs?
A: It features a 3 HP electric motor with direct gear drive transmission and a 142″ vertical blade that delivers consistent cutting performance at high speed for tough jobs.
Q: What construction and durability features does it have?
A: Built with open‑frame stainless steel construction, removable double‑flanged pulleys, a tri‑rail carriage, pivoted automatic tension, and adjustable legs for durability, stability, and ease of cleaning.
Q: What cutting capacity does it support?
A: Provides a cutting clearance of about 15‑3/4″ depth x 17‑1/2″ height with a strong frame and precise gauge plate for uniform cuts.
Q: How safe and easy is it to operate?
A: Includes upper/lower blade guards and an integrated pusher option (optional on some variants) to minimize direct handling near the blade, plus a simple start/stop control for straightforward operation.
Q: What environments is it best suited for?
A: Ideal for butcher shops, meat markets, food processing facilities, grocery meat rooms, and commercial kitchens where consistent, heavy‑duty cutting is required.
Maintenance Tips
- Daily Clean & Sanitize: After shutting off power, disassemble removable parts (tables, pulleys, guides, carriage) and thoroughly wash, sanitize, rinse, and dry to remove meat particles and bone dust. The open stainless steel design allows easy hose‑down or sink cleaning.
- Disconnect Power: Always disconnect electrical power and tag the disconnect before cleaning or maintenance to ensure technician and operator safety.
- Lubricate Bearings: After cleaning, apply a small amount of mineral oil to carriage ball bearings, gauge slide rod, and pulley shafts to keep movement smooth and prevent corrosion.
- Blade Care: Inspect blade tension and condition regularly; ensure guides, scrapers, and flange assemblies are correctly reinstalled after cleaning.
- Inspect Safety Features: Check blade guards, pusher plate, and carriage lock before use to maintain safe operation zones around the cutting blade.
- Professional Servicing: Arrange periodic professional inspection and service for electrical, drive, and motor components to uphold reliability and compliance.
