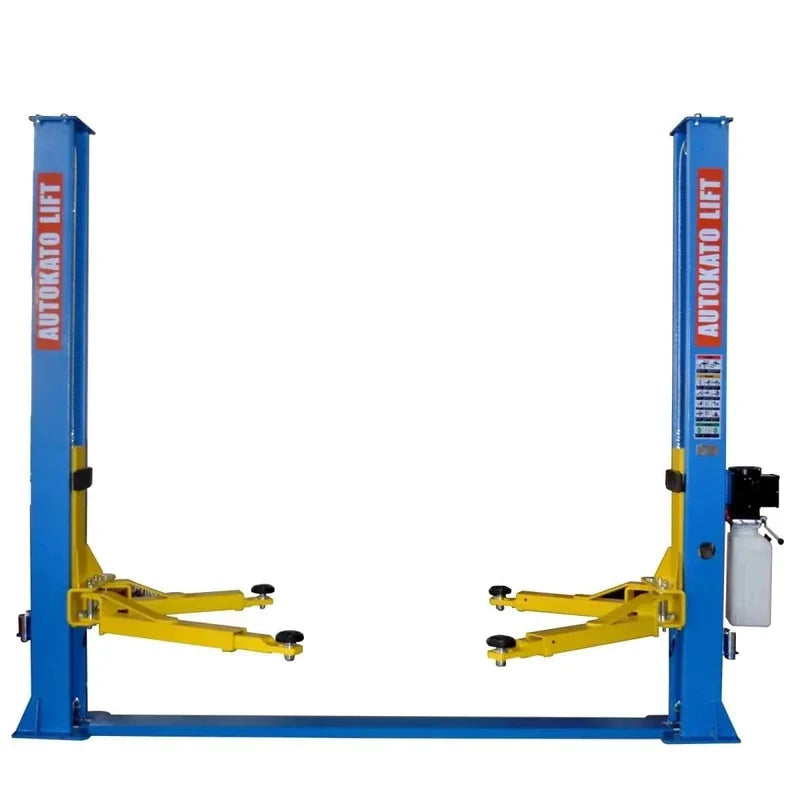

Katool KT-H105 10,000lbs Two Post Lift

  • Free Shipping
  • Secure Checkout
  • Full Interior Kit
  • Since 2009

Description

The Katool KT-H105 packs 10,000 lbs of lifting capacity into a base plate two-post design that fits standard garages and professional shops alike. What sets this lift apart from everything else in its price range: it comes equipped with a Bucher Hydraulics power unit — a Swiss-engineered, ISO 9001 certified hydraulic system trusted by commercial and industrial operations worldwide. You won't find Bucher Hydraulics on any other lift at this price point.

Dual hydraulic chain-drive cylinders ensure both arms rise in sync, while the dual-side manual safety lock release lets you work underneath with confidence at any height. Base plate design means easier installation, no overhead beam, and simpler delivery day unloading.

1-year parts + 3-year structural warranty | CE certified (150% static load tested)

Will It Fit Your Garage?

Before you buy any two-post lift, check your ceiling and floor. The KT-H105 requires:

  • Ceiling Height: 11 ft minimum (110.9" overall height)
  • Floor Width: 12 ft minimum (140.4" overall width)
  • Drive-Through Clearance: 98.4" (fits full-size trucks and SUVs)
  • Concrete Thickness: 5.9" (150mm) minimum with a 3,000 PSI rating

Important: Concrete thickness must be at least 5.9" (150mm) with a 3,000 PSI rating. It is the customer's responsibility to verify concrete thickness and strength before purchase and installation.

Need more lifting capacity? Check out the Katool H115Z (11,000 lbs).

Bucher Hydraulics Power Unit

Most two-post lifts in this price range ship with no-name hydraulic power units from unknown manufacturers. The KT-H105 comes standard with a Bucher Hydraulics power unit — a Swiss-made, ISO 9001 certified system built to commercial and industrial standards.

Bucher Hydraulics has been manufacturing precision hydraulic systems since 1923. Their power units are used in construction equipment, agricultural machinery, and industrial applications around the world. On the KT-H105, this translates to smoother lifting, quieter operation, and a hydraulic system that's built to last far longer than the generic alternatives.

katool kt h105 bucher hydraulics power unit close up

What's in the Box

Every KT-H105 ships complete and ready to install:

  • 2x lift columns with integrated base plates
  • 4x adjustable lift arms (2-stage front and rear)

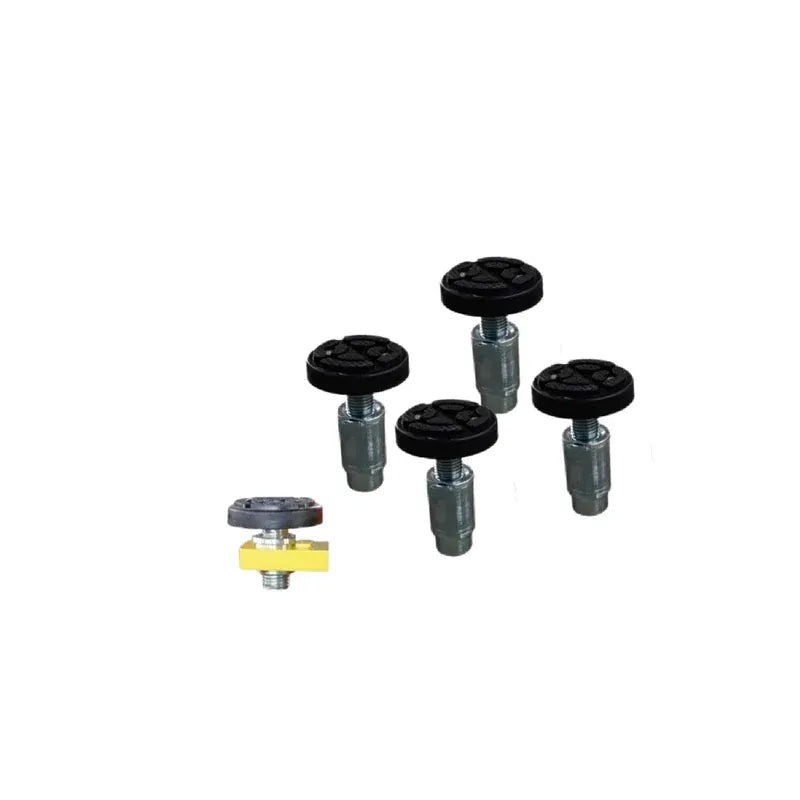

  • 4x screw-on rubber lift pads with +100mm (3.9") extension adaptors
  • 1x Bucher Hydraulics power unit (220V / 60Hz / 1-Phase / 2.2KW motor)
  • Rubber door guards included
  • All mounting hardware and anchor bolts

Perfect For

  • Home garages & hobby shops — base plate design makes DIY installation manageable, and real customers are running these in metal buildings and standard 2-car garages
  • Professional auto repair shops — 10,000 lbs handles cars, crossovers, SUVs, and most light trucks
  • Dealerships & body shops — Bucher Hydraulics unit delivers the reliability you need for daily commercial use
  • Fleet maintenance facilities — built for high-volume daily operation with a 3-year structural warranty

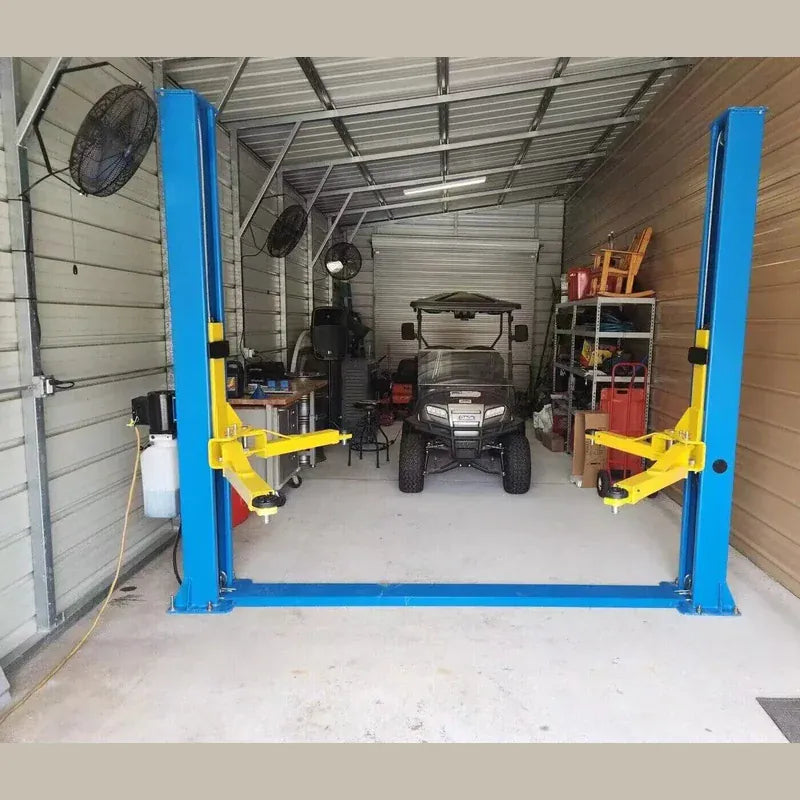

katool kt h105 10000lb two post lift installed in garage

Specifications

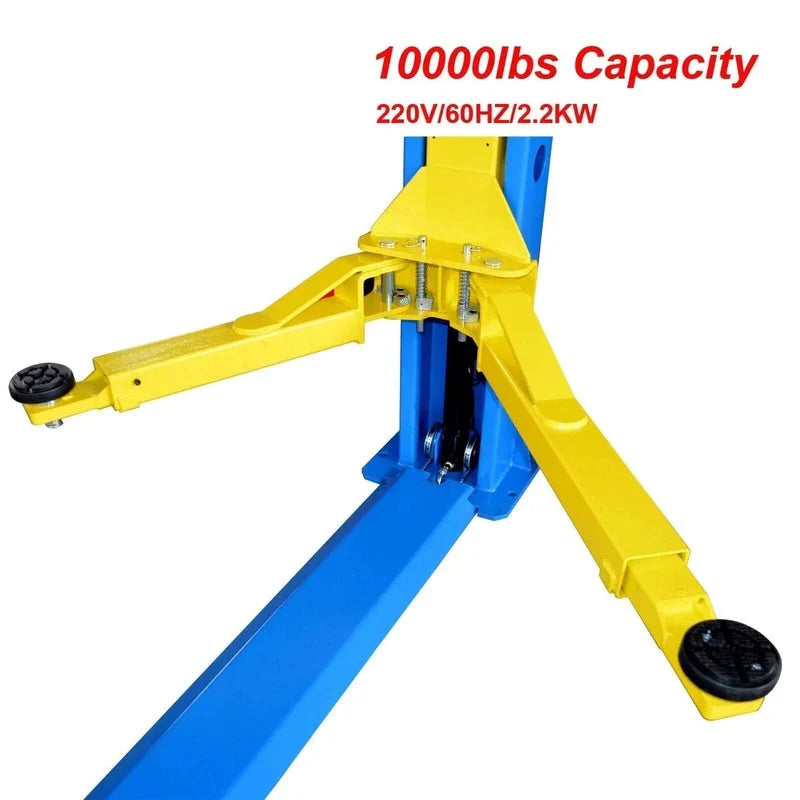

Lifting Capacity 10,000 lbs (4,500 kg)
Max Lifting Height 70.8" (1,800mm)
Minimum Height 3.9" (100mm)
Overall Height 110.9" (2,818mm)
Overall Width 140.4" (3,565mm)
Outside Column Width 124.8" (3,170mm)
Inside Column Width 110.2" (2,800mm)
Drive-Through Clearance 98.4" (2,500mm)
Front Arm Reach 29.5" – 46" (2-stage adjustable)
Rear Arm Reach 35.4" – 58.2" (2-stage adjustable)
Motor 220VAC / 60Hz / 1-Phase / 2.2KW
Net Weight 1,256 lbs (570 kg)
Design Base Plate (no overhead beam)
Safety Lock Release Manual (dual-side)
Hydraulic System Bucher Hydraulics — dual chain-drive cylinders
Extension Adaptors Screw-on pads with +100mm adaptors (included)
Rubber Door Guards Included
Certification CE Approved (115% dynamic / 150% static tested)
Concrete Requirement 5.9" (150mm) minimum, 3,000 PSI

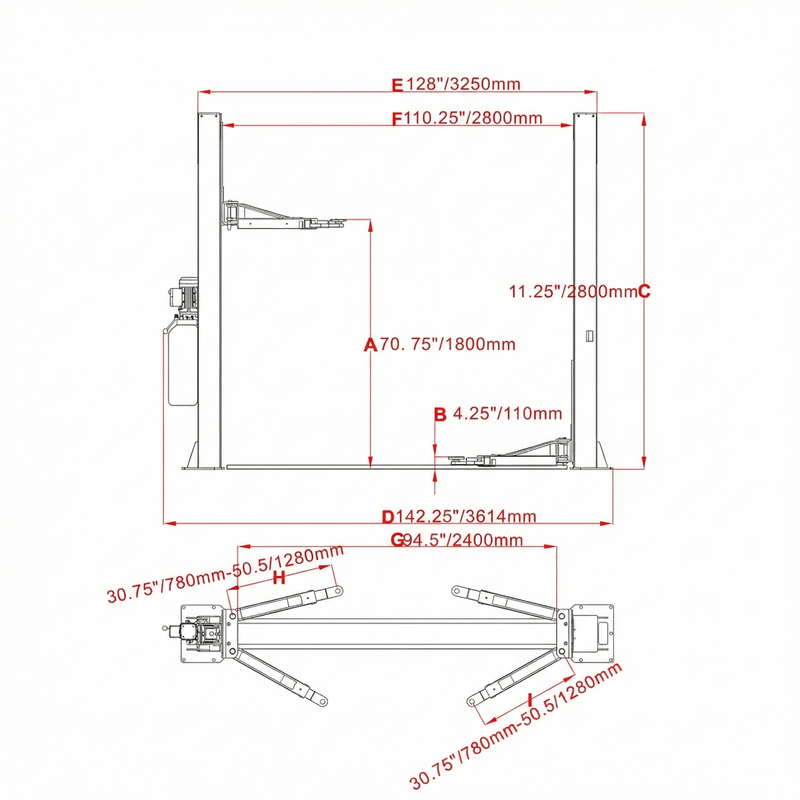

Katool KT H105 Two Post Lift measurements

Warranty

Katool stands behind the KT-H105 with coverage that goes beyond the industry standard:

  • 1-Year Full Parts Warranty — Covers cylinders, power unit, motor, and all electronics. Replacement parts shipped free.
  • 3-Year Structural Warranty — Covers columns, arms, and base plates against structural defects.
  • Optional 2-Year Extended Warranty — Available for purchase for additional peace of mind.

All warranty claims include free replacement parts and free shipping on those parts. Labor is the responsibility of the installer/owner. Claims are reviewed by Katool's service department and may require supporting photos or video of the defect. Do not disassemble any equipment before the issue is reviewed — doing so may void the warranty.

Shipping & Delivery

Please keep the following in mind when planning for delivery:

  • Freight shipping only — delivered via LTL carrier on a pallet
  • The buyer is responsible for unloading from the truck — consider having forklift access or a loading dock available
  • The buyer is responsible for any re-delivery charges if delivery is missed
  • Inspect the product carefully before signing the Bill of Lading or delivery receipt — buyer satisfaction is assumed if no damages are noted at time of delivery

Base plate design means simpler unloading, no overhead beam to wrestle with.
