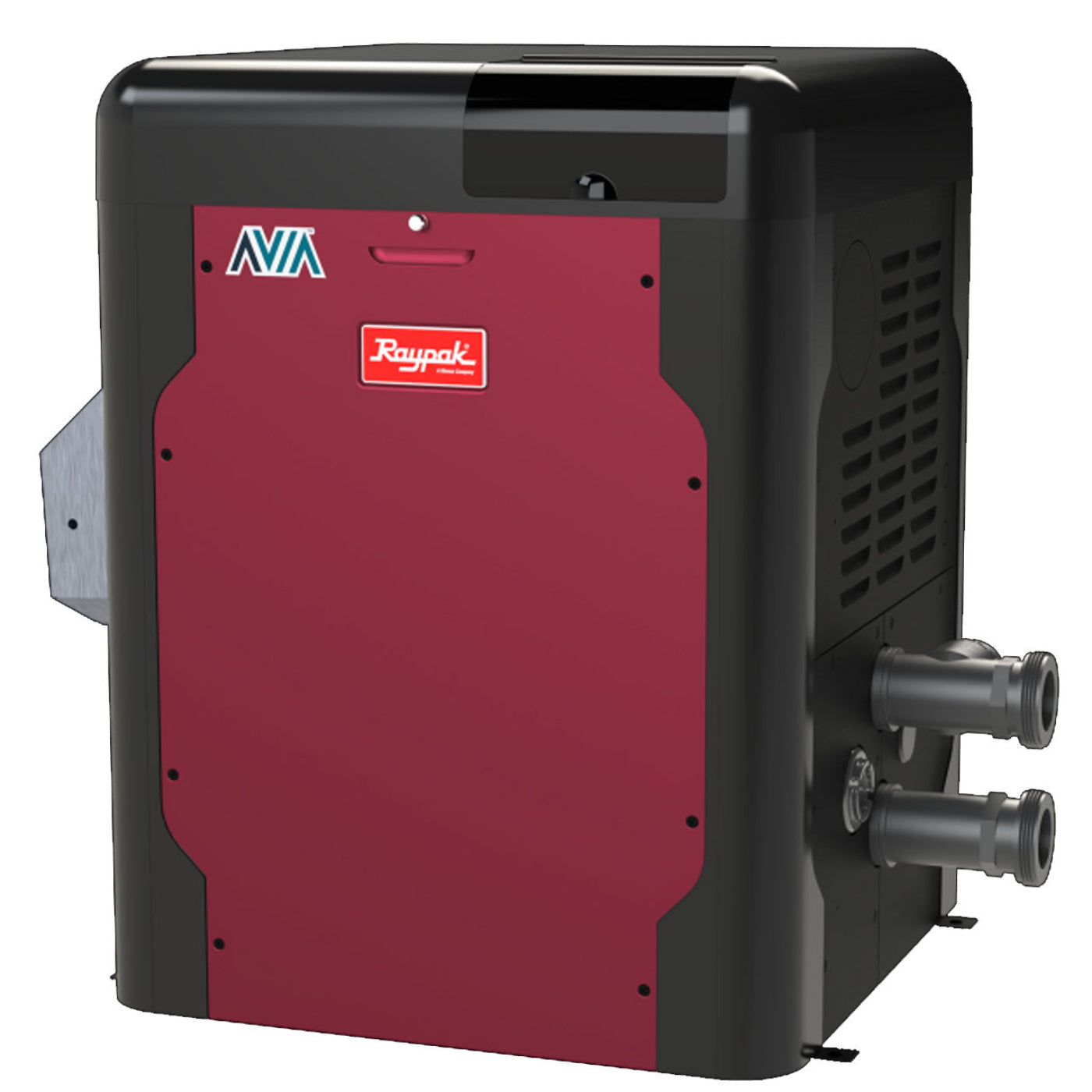

Raypak AVIA 399k Btu Digital Pool Heater - Copper - Propane Gas - WiFi Ready - 018039
Raypak AVIA 399k Btu Digital Pool Heater - Copper - Propane Gas - WiFi Ready - 018039
The Raypak AVIA 399K BTU Propane Pool Heater (Model 018039) combines premium performance with intelligent design. Built for homeowners who demand fast heating and modern controls, the AVIA features integrated Wi-Fi to give you full control of your pool temperature from anywhere using the Raymote mobile app.
Its copper heat exchanger makes it ideal for pools with balanced, non-corrosive water. With an ultra-compact footprint and universal vertical venting, it installs easily in both new and retrofit applications.
Features
- 399,000 BTU Output: Delivers fast, powerful heating for large pools and spas using propane gas.

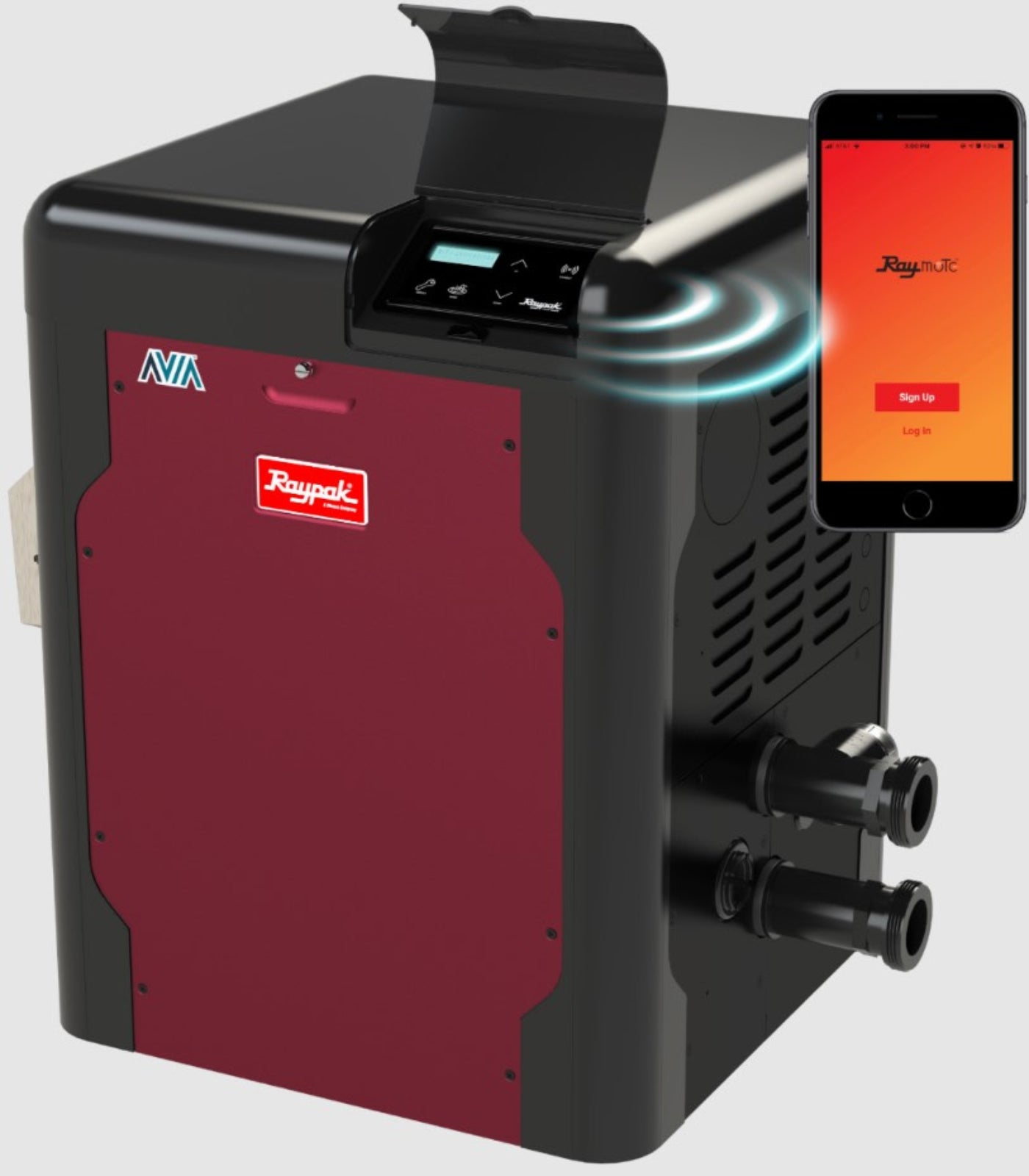

- Wi-Fi Control with Raymote App: Adjust temperature, set schedules, and monitor performance from your smartphone.
- Copper Heat Exchanger: High-efficiency heating with excellent thermal conductivity for clean water applications.
- Small Footprint, Big Performance: Compact design fits tight spaces while still packing commercial-grade power.
- Integrated Bypass Valve: Self-adjusts to optimize flow and extend heater life—no need for external plumbing changes.
- Large residential pools and spas
- Users who want fast propane heating and remote access
- Pools with non-salt, chemically balanced water
Specifications
| Model Number | 018039 |
|---|---|
| Manufacturer / Series | Raypak Avia 404A Series |
| BTU Output | 399,000 BTU |
| Fuel Type | Propane Gas (Liquid Propane) |
| Heat Exchanger | Copper |
| Header Material | Polymer (corrosion-resistant) |
| Voltage | 120 / 240 V (dual voltage) |
| Wi-Fi Connectivity | Integrated (Raymote™ app compatible) |
| Control Panel | Full-color touchscreen display with diagnostics |
| Ignition System | Electronic ignition |
| Thermal Efficiency | ~84% |
| Venting Type | Universal (Vertical or Horizontal venting) |
| Water Connections | 2" inlet/outlet |
| Flow Rate | Up to ~100 GPM |
| Application | Pools & Spas (Residential / Light Commercial) |
| Weight | ~135 lbs |
| Certifications | Low NOx, CSA/ANSI compliant |
| Special Features | Smart scheduling, remote control, ProTek Shield, compact design |
Included
- Raypak AVIA 399K Propane Pool Heater
- User and installation manual
What our Experts Think
- Powerful 264,000 BTU output provides strong heating for medium to large residential pools and spas using propane fuel
- Built-in Wi-Fi control (Raymote app) lets you monitor and adjust temperature, schedules, and diagnostics remotely
- Copper heat exchanger maximizes heat transfer efficiency in properly maintained non-saltwater pools
- Smart automation & scheduling learns pool size and optimizes heat cycles for comfort and efficiency

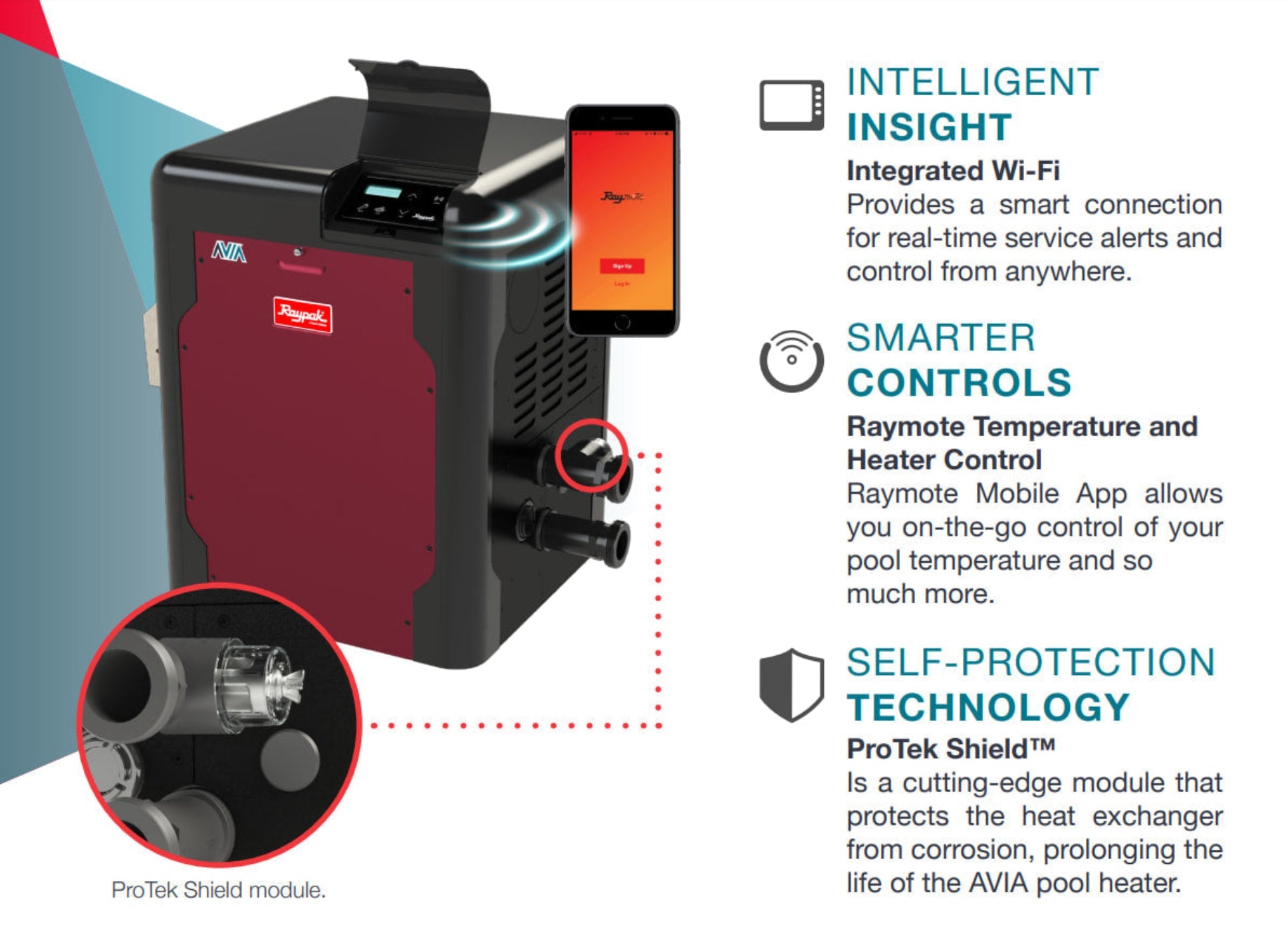

- ProTek Shield corrosion protection helps extend heat exchanger life under normal pool chemistry
- Compact, service-friendly design fits standard equipment pads and offers flexible installation options
- Low NOx certified with ~84% efficiency balances performance and environmental standards
- Real-world user threads note ignition and chemical maintenance considerations — proper setup and water chemistry are key for reliability (community feedback)
Q&A
Q: What is the BTU output and fuel type of this heater?
A: This Raypak AVIA delivers 399,000 BTU of heat and runs on propane gas, making it ideal for large residential pools and spas.
Q: What smart features does the AVIA heater include?
A: It features built-in Wi-Fi connectivity and smart automation with the Raymote™ app for remote temperature control and scheduling.
Q: What type of heat exchanger does it use?
A: It uses a copper heat exchanger for efficient heat transfer in balanced pool environments.
Q: What are the efficiency and emissions specs?
A: The AVIA heater has about 84% thermal efficiency and is Low NOx certified for reduced emissions.
Q: Is this heater easy to install?
A: Yes — it’s compact and lightweight (~140 lbs) with flexible installation options including rotatable connections.
Q: Can it manage other pool equipment?
A: Yes — the smart ecosystem manager lets you control pump and water features alongside the heater.
Q: Why choose this model over standard heaters?
A: Combines high output, smart Wi-Fi control, efficient performance, and serviceability in one unit.
Q: Is professional installation recommended?
A: Yes — professional installation ensures correct gas hookup, venting, and code compliance.
Maintenance Tips
- Balance water chemistry: Keep pH and sanitizer within recommended ranges to protect the copper heat exchanger from corrosion and leaks (poor chemistry is a common cause of heat exchanger failure).
- Maintain proper flow: Ensure filters are clean and the pump is set for correct GPM; low flow can trigger faults and stress internal components.
- Inspect burners & combustion area: Remove debris and check ignition components regularly to ensure efficient combustion and prevent service faults.
- Monitor digital controls & Wi-Fi: Use the integrated Raymote app to track performance, error codes, and schedule heating for efficient operation.
- Protect from moisture intrusion: Keep the cabinet dry and clear of standing water to prevent corrosion of electronics and internal parts.
- Check gas connections & pressure: Confirm secure propane fittings and correct pressure for safe, reliable ignition.
- Annual professional service: Have a qualified technician inspect heat exchanger, valves, sensors, and safety switches before the heating season.
